High-precision digital cutting solution for apparel, technical textiles, leather, composites, and sample room production applications.

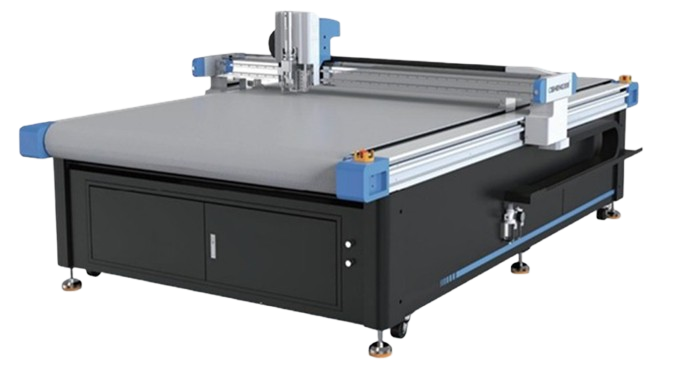

Single Ply Cutter is an advanced digital cutting system designed for precise cutting of single-layer materials.
It enables manufacturers to improve cutting accuracy, reduce material waste, and increase productivity for sampling, short runs, and customized production.
| Parameter | Specification |
|---|---|
| Cutting Area | 1600 × 2500 mm |
| Overall Dimension | 2233 × 3400 × 1300 mm |
| Maximum Operating Speed |
Up to 1800 mm/s
(Actual speed depends on the material and cutting graphics.) |
| Maximum Cutting Thickness |
50 mm
(Other requirements can be customized.) |
| Cutting Accuracy | ≤ ±0.1 mm |
| Transmission Interface | Ethernet Port |
| Compatible File Format |
PLT, DXF Compatible with common CAD software formats such as PLT and DXF. |
| Transfer Method | High-precision rack & pinion with linear guide |
| Drive Motor | Imported servo motor and drive |
| Adsorption Method | Vacuum adsorption |
| Operating Voltage | AC 380V |
| Gross Weight | 1200 kg |
Eliminates material distortion during cutting.
Highly accurate cutting performance.
Supports blades, pens, punches, and marking tools.
Compatible with industry-standard CAD systems.
Faster than manual cutting operations.
Maximizes material utilization.
Partner with our experts to enhance garment fit, minimize material waste, and accelerate every stage of your product development process.
