High-precision cutting solutions designed for demanding fabric applications across apparel, automotive, industrial, and technical textile industries.
An economical solution designed to deliver reliable cutting performance and excellent value.
Designed for precise cutting applications where accuracy and consistency are important.
Suitable for high-precision cutting of fabrics with relatively hard textures, such as denim, airbag materials, automotive interiors, and industrial textiles, as well as knitted and woven fabrics.
Provides an effective balance of performance, productivity, and operational value.
Designed for demanding production environments requiring reliable and consistent performance.
Suitable for production environments where high productivity and repeatable cutting performance are required.
Suitable for high-precision cutting of tough materials such as denim, airbag fabrics, automotive interiors, and industrial textiles, as well as knitted and woven fabrics.

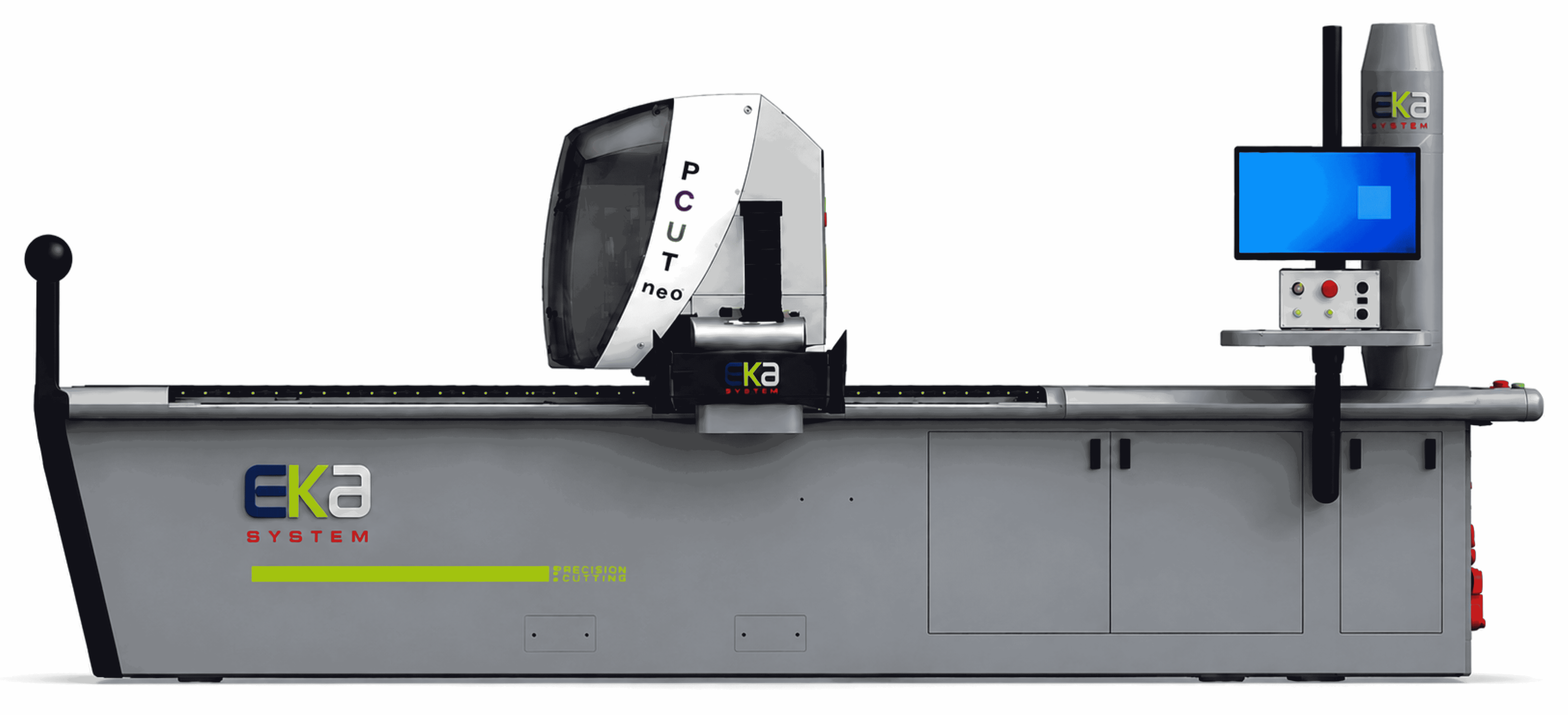

PCUT Neo combines high-speed cutting, intelligent control, precision compensation, and advanced automation technologies for reliable and efficient textile cutting.

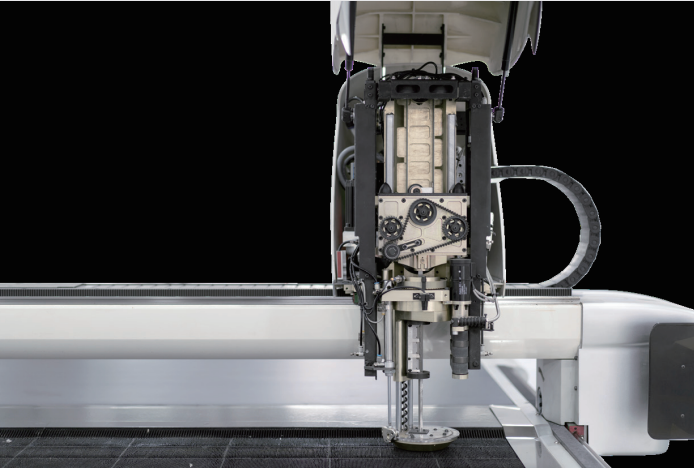

Equipped with a powerful motor and high-performance cutting head, PCUT Neo uses a high-speed, high-torque servo motor to achieve a cutting frequency of 6000 r/min.
The stable power output enables the machine to efficiently cut through materials ranging from very soft knitted fabrics to relatively thick and rigid denim fabrics.

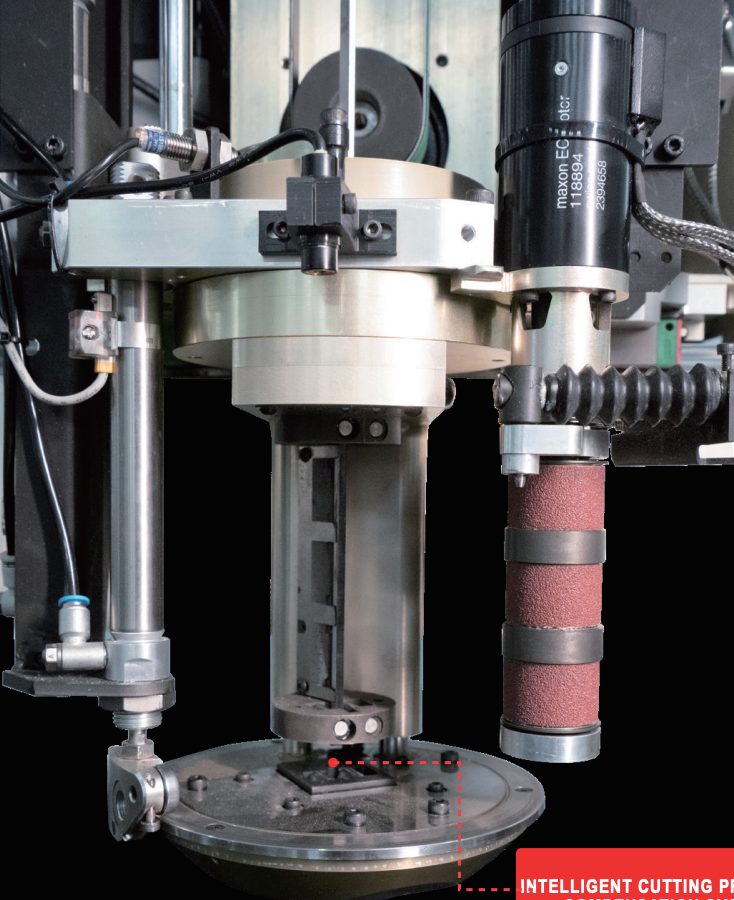

The intelligent sensing compensation system is one of the advanced cutting compensation systems for multi-layer cutting tables.
It automatically adjusts the cutting blade angle in real time according to changes in multi-layer cutting pieces.
This ensures consistency between symmetrical and upper/lower cutting pieces while reducing problems such as cutting blade bending and deformation during multi-layer cutting.

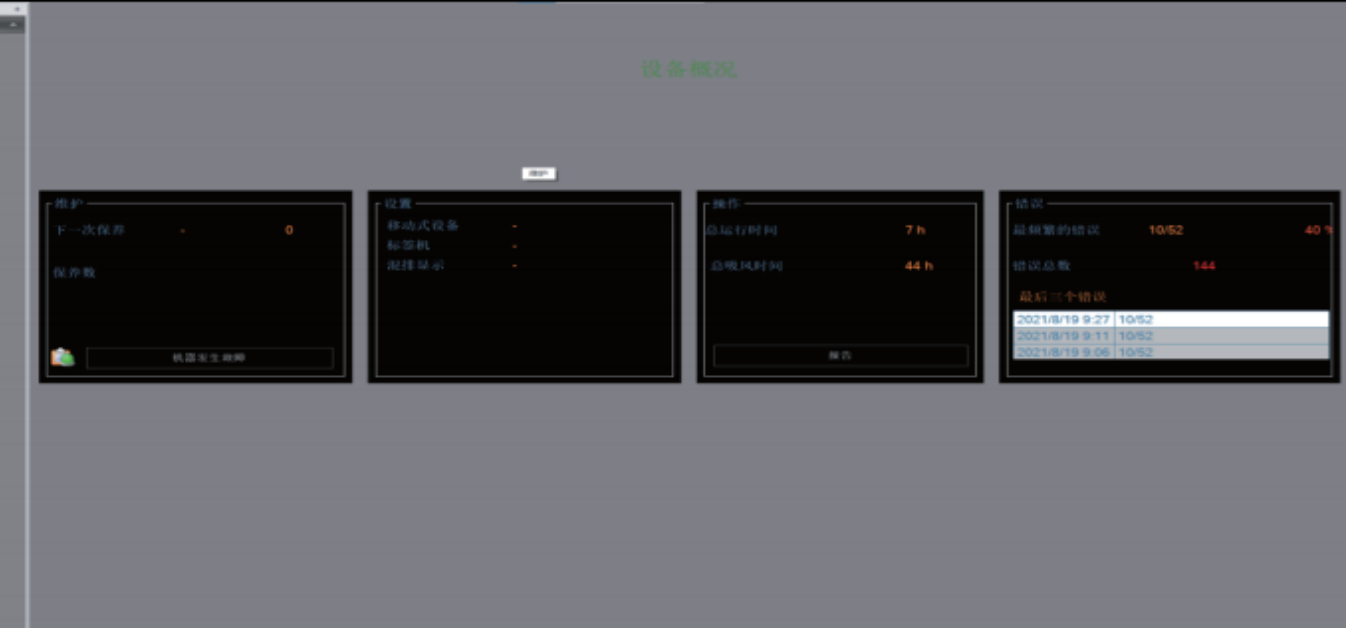

A user-friendly human-machine interface provides real-time optimized visual management and an error-proofing system.
The system supports cutting parameter settings, regular maintenance reminders, remote troubleshooting, runtime statistics and error information statistics.
It also provides power-off memory functionality, monitoring of electrical component current and voltage, and monitoring of consumable wear conditions.

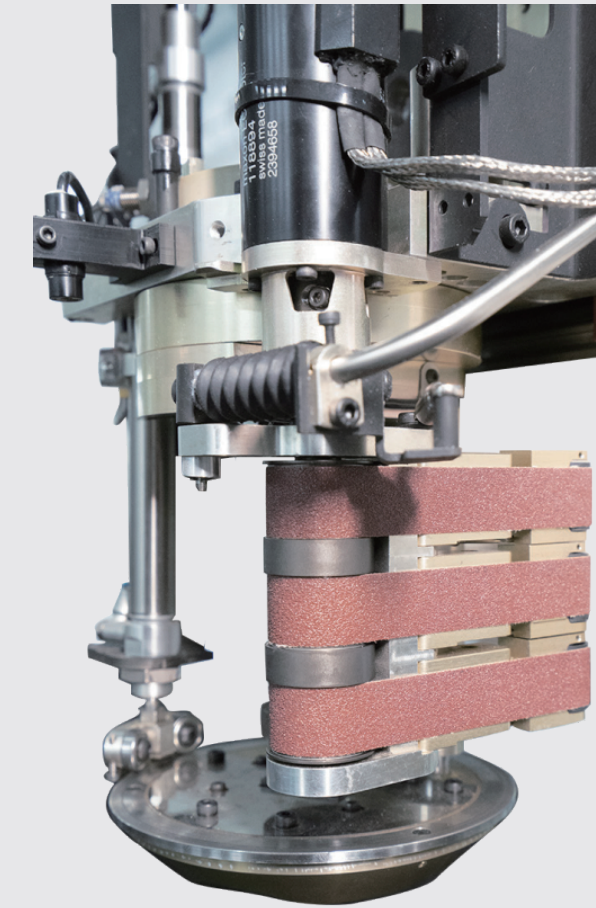

The sharpening system is equipped with a high-speed motor with a maximum speed of 15,000 r/min.
It offers a variety of imported ceramic abrasive belts made from different materials to suit different cutting requirements.
The system can automatically sharpen the blade by selecting specific parameters according to the fabric type without manual intervention.
This helps maintain blade sharpness and makes the machine suitable for handling various types of fabrics.

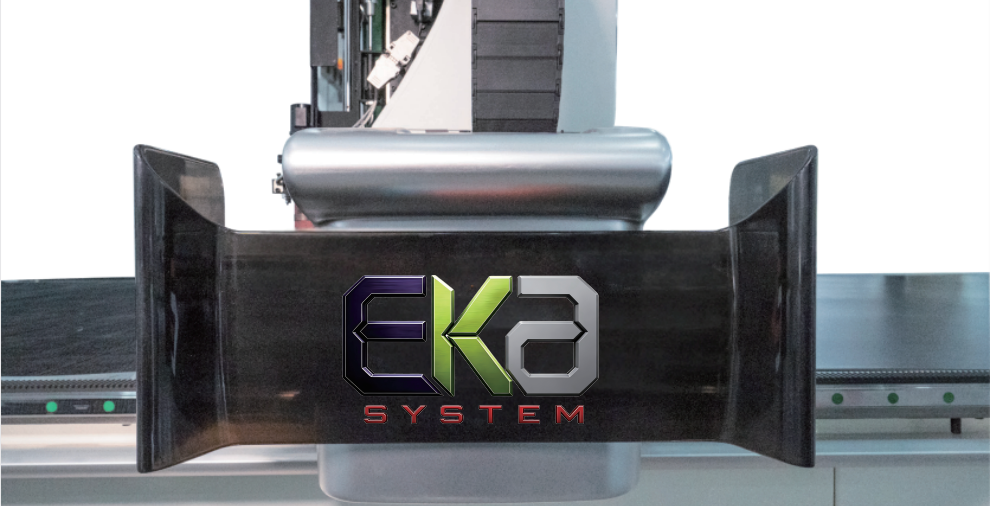

The machine is equipped with a high safety performance system designed to help avoid issues caused by accidental operation or collisions.
During high-speed cutting, if the anti-collision device is touched, the machine stops immediately.
The cutting process can then be resumed through a visual recovery operation on the control panel, providing both safety and quick recovery.
The cutting table can be equipped with multiple fabric spreading tables, enabling multi-station processing on a single machine.
This configuration supports continuous operation without downtime and effectively increases the utilization rate of the equipment.
The cooling system is designed for materials that are difficult to cut and prone to melting adhesive, such as coated fabrics for airbags, viscose fiber fabrics, synthetic fiber fabrics, PU, PVC and other similar materials.
It helps prevent the cutting blade from overheating during the cutting process, reducing problems such as blade sticking, melting edges and adhesive melting.
This improves production efficiency and extends the service life of the cutting tools.
Technical specifications for the PCUT Neo high-speed intelligent cutting bed series.
| Equipment Model | High Speed Intelligent Cutting Bed Series | ||||
|---|---|---|---|---|---|
| PCUT neo-S55 | PCUT neo-S85 | PCUT neo-H65 | PCUT neo-H95 | PCUT neo-S30 | |
| Cutting Height / mm | 55 | 85 | 65 | 95 | 30 |
| Cutting Area / m | 1.8 × (1.8 / 2.0 / 2.2) | 1.8 × 1.8 / 2.2 | |||
| Blade Specifications / mm |
2.4 × 8.5 2 × 7 |
2.4 × 8.5 |
2.4 × 8.5 2 × 7 |
2.4 × 8.5 | 1.5 × 5.5 |
| Maximum Cutting Speed / m/min | 50 | 80 | |||
| Maximum Acceleration / m/s² | 5 | 8 | |||
| Blade Vibration Frequency / min | 3600 | 6000 | 7000 | ||
| Average Power Consumption / kW | 6–8 | 8–10 | 6 | ||
| Lateral Transfer | OPTIONAL | ||||
| Drilling Needle | OPTIONAL | ||||
| Double Drilling Tool System | OPTIONAL | ||||
| Blade Cooling System | OPTIONAL | ||||
| Drilling Silo Type Multi-Drill Prame System | OPTIONAL | ||||
| Powerful Heavy Cutter Head | OPTIONAL | ||||
| Automatic Cutting Compensation System | STANDARD CONFIGURATION | ||||
| Overall Dimensions (L × W × H) / m | 4.9 × 2.8 × 2.2 | 3.9 × 2.8 × 2.2 | |||
| Equipment Weight / kg | 3900 | 2800 | |||
| Table Height / m | 0.9 | ||||
| Power Supply V / Hz | 380V / 50Hz | ||||
| Vacuum Power / kW | 28 | 30 | 18.5 | ||
| Vacuum Pressure / kPa | MAX -25 | ||||
| Operating System | Win10 | ||||
| CAD Compatibility | NC CUT GBR DXF PLT | ||||
| Pressure of Compressed Air / MPa | 0.6–0.7 | ||||
| Fixed Mode | Vacuum Adsorption | ||||
| Repeat Accuracy | ≤ 0.05 mm | ||||
| Transmission Interface | USB 2.0 | ||||
| Noise Level / dB | ≤ 75 | ||||
| Display Size | 24-inch | ||||
| Note | Other special models can support customization | ||||
Designed for high-precision cutting across demanding textile and industrial applications.
Built to provide consistent cutting performance for professional manufacturing environments.
The S85 / H95 models are designed to support demanding mass production requirements.
